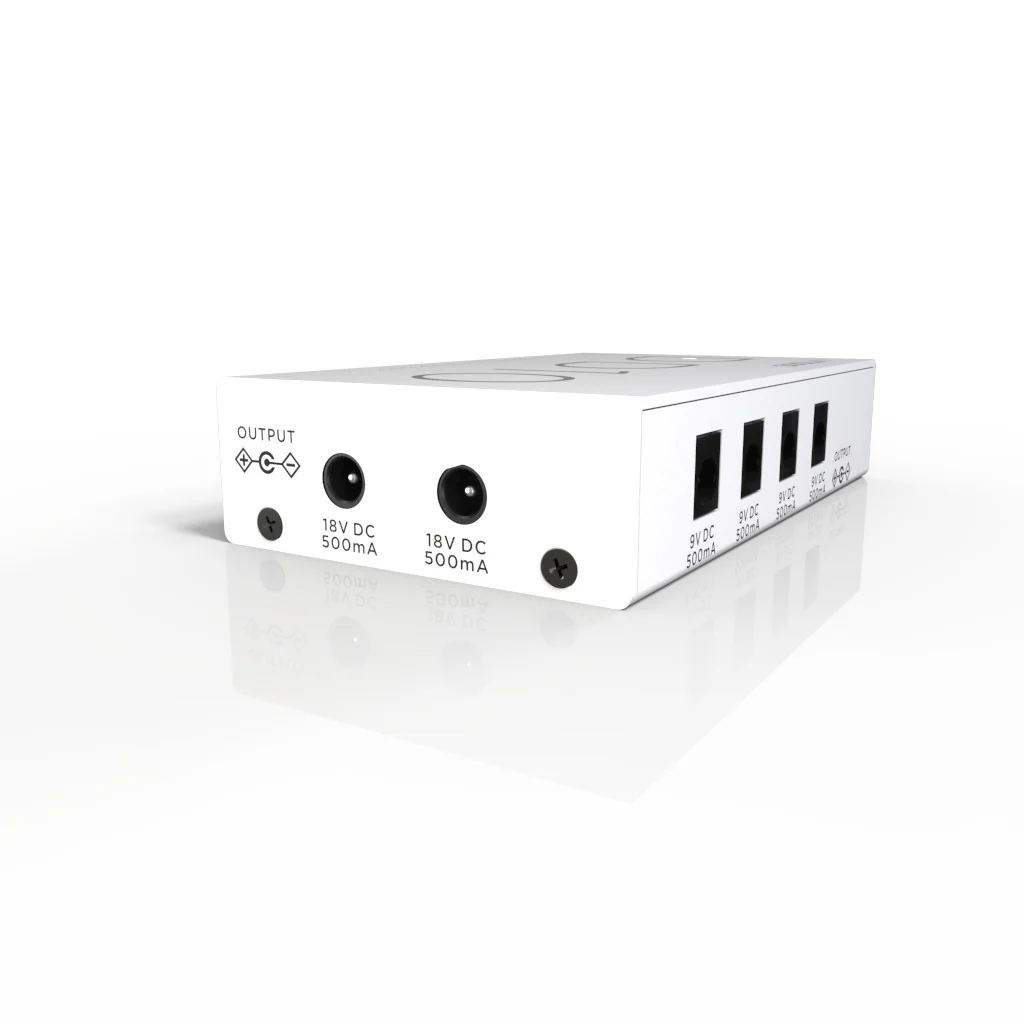

VITOOS DD10

This is a true isolated Power Supply (PSU) with 10 isolated outputs. Isolated PSU is like having a separate power adapter for each of the 10 outputs. It achieves true circuit isolation through mini transformers in each of the outputs.

You can test that each section's ground are isolated. It is also a power conditioner which supplies a predictable voltage all the time and keeps your pedals in constant performance from one show to another.

Guitar Pusher backs it up with 1 year personal warranty. This is a great alternative to some Voodoo Labs or Cioks.





SPECIFICATIONS:

main body SIZE	120*70*25mm
main body WEIGHT	180g
PACKAGE SIZE	273 x 236 x 64 mm
PACKAGE WEIGHT	1266g
INPUT	18V2A
OUT POWER	27W（MAX）
OUT CHANNEL	10
OUTPUT 1-8	9V500mA
OUTPUT 9-10	18V 500mA
Short/overload protection	YES
ISOLATED	FULLY ISOLATED

PACKING LIST:

• 1 x AC to DC Adapter 18V2A (negative polarity on the inside)
• 1 x Straight to Right-angled 30cm
• 10 x Straight to Right-angled 60cm
• 1 x Straight to Right-angled 90cm
• 1 x DC Current Doubler 2 Right-angled to 1 Straight male
• 1 x Battery clip on 9V battery Straight male  (negative polarity on the inside)
• 1 x Polarity conversion Right-angled male to Straight female 15cm
• 4 x HOOK& LOOP Straps
• 1 x Cable Locker Set
