Original: $4.49
-70%$4.49
$1.35The Story

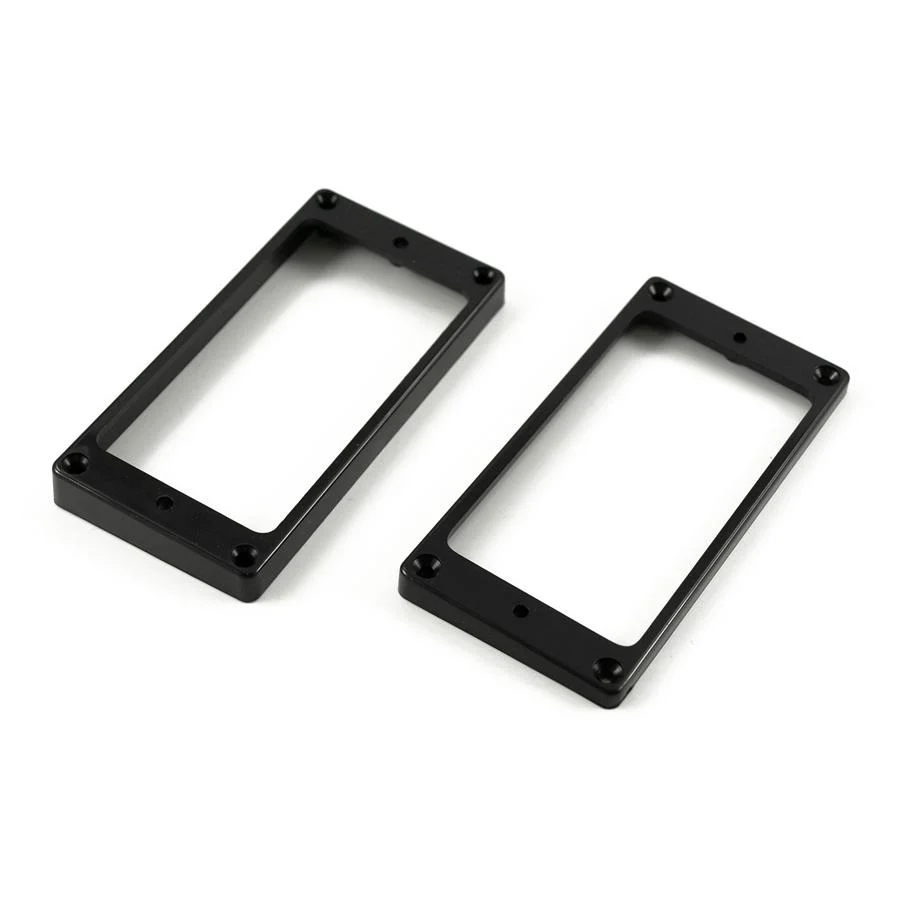

This is a typical set of plastic mounting rings found on most 2 humbucker guitars. It is comprised of 1 high and 1 low ring.
Important Dimensions:
Low = 9/64 inches - 13/64 inches
High = 19/64 inches – 3/8 inches
Interior Dimensions:
Pickup cutout width = 1.5 inches (38.2mm)
Pickup cutout length = 2.76 inches (70.2mm)
Exterior Dimensions:
Exterior width = 1.76 inches (44.7mm)
Exterior length = 3.50 inches (89.1mm)
Exterior heights tall side = .375 inches (9.5mm)
Exterior height short side = .295 inches (7.5mm)
Height holes center to center = 3.07 inches (78mm)
Mounting holes center to center length = 3.185 inches (8.09mm)
Mounting holes center to center width = 1.43 inches (36.3mm)
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This is a typical set of plastic mounting rings found on most 2 humbucker guitars. It is comprised of 1 high and 1 low ring.
Important Dimensions:
Low = 9/64 inches - 13/64 inches
High = 19/64 inches – 3/8 inches
Interior Dimensions:
Pickup cutout width = 1.5 inches (38.2mm)
Pickup cutout length = 2.76 inches (70.2mm)
Exterior Dimensions:
Exterior width = 1.76 inches (44.7mm)
Exterior length = 3.50 inches (89.1mm)
Exterior heights tall side = .375 inches (9.5mm)
Exterior height short side = .295 inches (7.5mm)
Height holes center to center = 3.07 inches (78mm)
Mounting holes center to center length = 3.185 inches (8.09mm)
Mounting holes center to center width = 1.43 inches (36.3mm)
